CBD10
▼ Bearish
Streaming Alert (Scanner)
10 Minute Consolidation Breakdown Alert (CBD10)
Find stocks breaking down below a 10-minute consolidation range in real time with Trade Ideas Streaming Alerts (Scanner). A 10-minute consolidation breakdown is when price moves down out of a consolidation range on the 10-minute chart. It is traditional chart analysis on one time frame, and a single print can trigger it.
Know when the pattern finishes.
Free account, just an email. No card. Live access for a limited time.
Streaming Alerts push each 10 Minute Consolidation Breakdown alert on the print that triggers it.
How Trade Ideas finds it: by default, the 10 Minute Consolidation Breakdown alert will appear when the stock price moves down outside of the range of the consolidation pattern. See Trade Ideas plans and pricing to run it live.
How the 10 Minute Consolidation Breakdown alert works
Keep in mind
This alert describes a consolidation breakdown pattern and describes the same general pattern as the channel breakdown alert. However, this alert uses more traditional methods of analysis, and may be easier to see on a stock chart. For one thing, this alert works on one specific time frame, where the channel breakdown alert automatically looks at a wide range of timeframes. Also, this alert pays more attention to time, and very little attention to volume. Finally, this alert does not require any confirmation; a single print can create an alert.

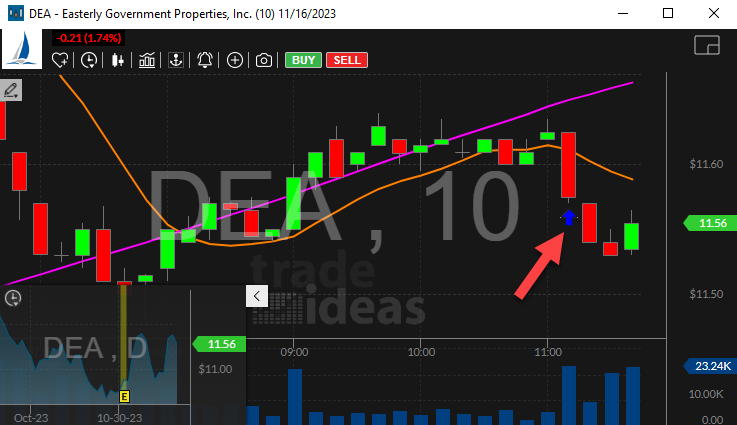

To see this alert clearly, configure your stock chart to show candlesticks. And show exactly 41 periods in the chart. This pattern will be visible on other charts, but it will be easiest to spot on a chart configured in this way.
Keep in mind
Our definition of a consolidation removes any stock with empty candles. If a stock hasn’t traded at all in some time, that does not count as a consolidation pattern. Each candle in the consolidation must contain at least one print
Default settings
By default, the 10 Minute Consolidation Breakdown alert will appear when the stock price moves down outside of the range of the consolidation pattern. If the price continues to move in the same direction, and it moves quickly enough and far enough, we will report additional alerts.
Custom settings
Settings

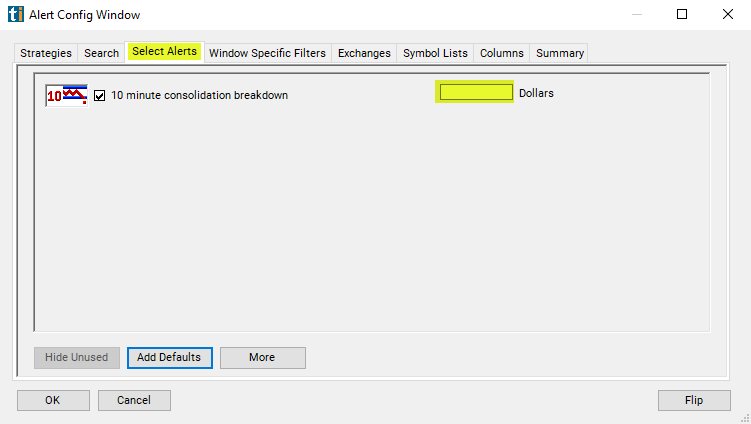

For '10 Minute Consolidation Breakdown' alerts, you have the option to use an alert specific filter. This filter is located immediately to the right of the corresponding alert and is always optional. You can decide to leave it blank if you want to receive more alerts, or you can fill it in to restrict the number of alerts you receive. This filter allows you to specify the quality of the alert. When you set a higher number for this filter, you are telling the alerts server to display only alerts that meet a higher quality standard, resulting in fewer alerts being shown.
When setting an alert for '10 Minute Consolidation Breakdown', the user can filter the alert in dollars, showing how far the last print was below the bottom of the consolidation pattern.
What the alert shows you

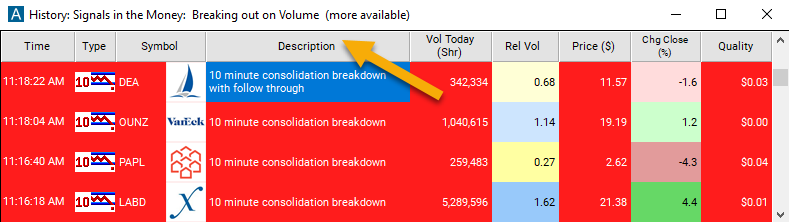

The description of the alert will give you more details on the alert.
Key point

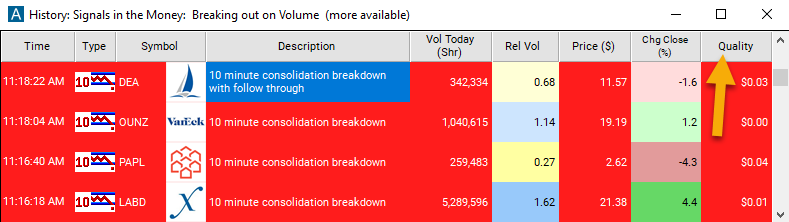

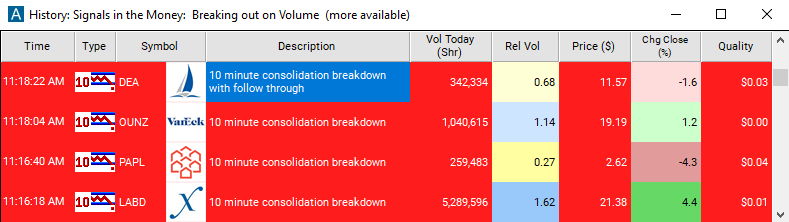

Add the quality column to a scan using the '10 Minute Consolidation Breakdown' alert to see the dollar value difference between the bottom of the channel and the last print at the time of the alert.
Related alerts
Filters to pair with the 10 Minute Consolidation Breakdown alert
Categories
FAQ
Show me stocks breaking down of a 10 minute range?
Turn on the 10 Minute Consolidation Breakdown alert (CBD10) in Trade Ideas Streaming Alerts. By default, the 10 Minute Consolidation Breakdown alert will appear when the stock price moves down outside of the range of the consolidation pattern.
What is the 10 Minute Consolidation Breakdown alert?
A 10-minute consolidation breakdown is when price moves down out of a consolidation range on the 10-minute chart. It is traditional chart analysis on one time frame, and a single print can trigger it.
How do I see fewer, higher-quality 10 Minute Consolidation Breakdown alerts?
Use the optional alert-specific filter immediately to the right of the alert. A higher number tells the alerts server to show only higher-quality alerts, so fewer appear. Leave it blank to see more.
